Item Sales Info
Part Number: S11663 / Vendor ID Number: 4799 / Custom:

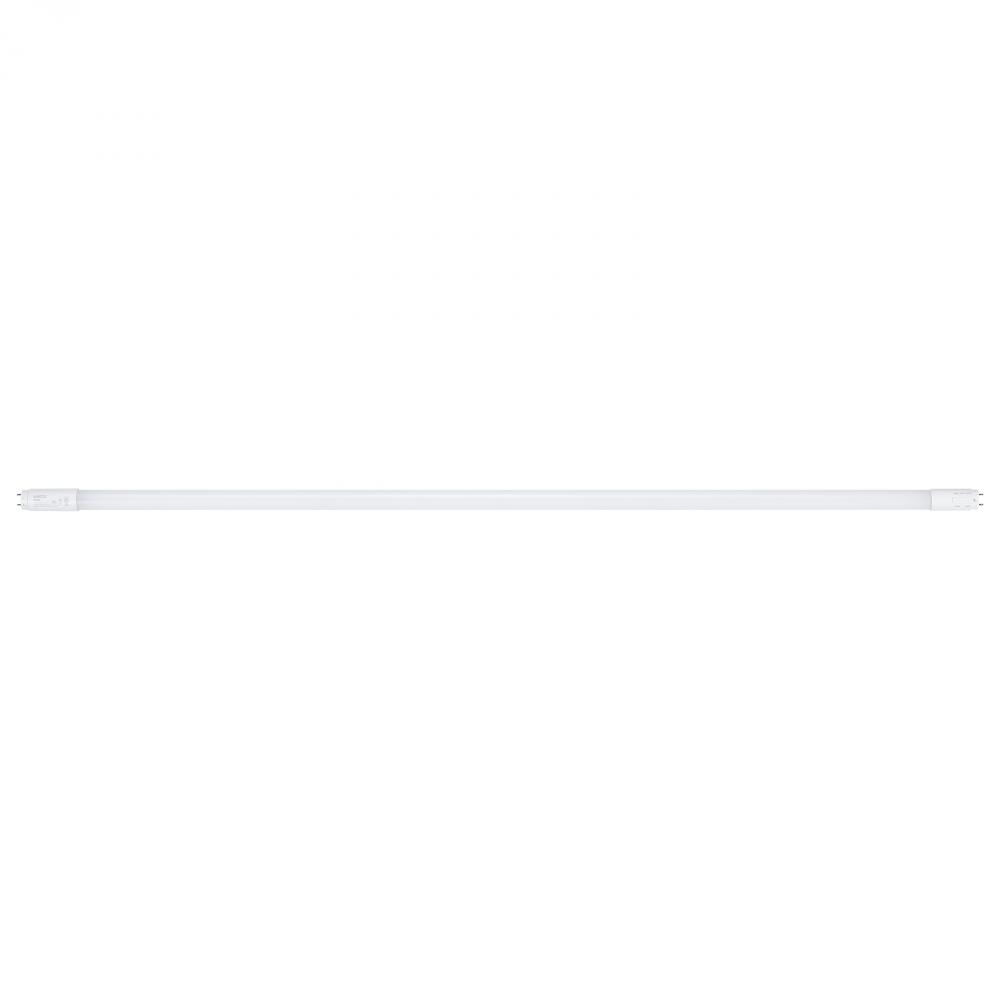

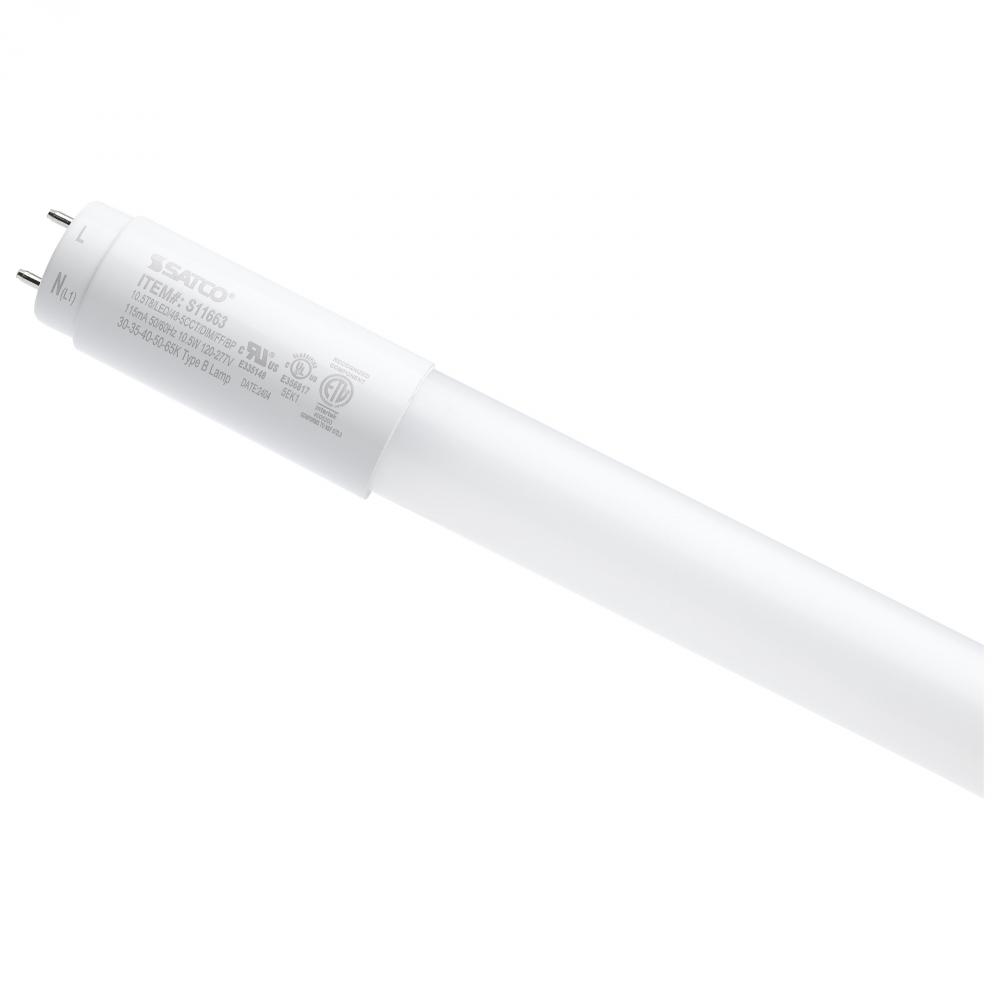

10.5 Watt T8 LED; 48 Inch; 30K/35K/40K/50K/65K CCT Selectable; Low Optical Flicker (less than 5%);

10.5 Watt T8 LED; 48 Inch; 30K/35K/40K/50K/65K CCT Selectable; Low Optical Flicker (less than 5%);
by Satco Products Inc.

32
54
Pack Of: 1
Call for Availability
Showroom Availability: Please call 1-780-450-0870 for availability
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 1.00"
Product Overview
10.5 Watt T8 LED; 48 Inch; 30K/35K/40K/50K/65K CCT Selectable; Low Optical Flicker (less than 5%); Medium Bi Pin Base; Type B Ballast Bypass; 120-277 Volt; Frost Finish
Product Availability
    Purchase now and we'll ship when it's available
Additional Information
Country of Origin- China
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
Frosted /vendors/vendorImages frosted.jpg
Finish Family:
Frost
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/3500K/4000K/5000K/6500K
Bulb Shape:
T8
Diameter:
1
EA Length:
48
Harmonized Codes:
8539.52.0051
Length:
47.2
Lumens:
1600L/1650L/1700L/1700L/1650L
Shap Carton Width:
1.18
Ship Carton Height:
1.18
Ship Weight:
0.47
Warranty:
5-Years
Weight:
0.42
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Beam Spread:
160
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Frost
Carton Cubic Feet:
0.0387
Cartons Per Unit:
1

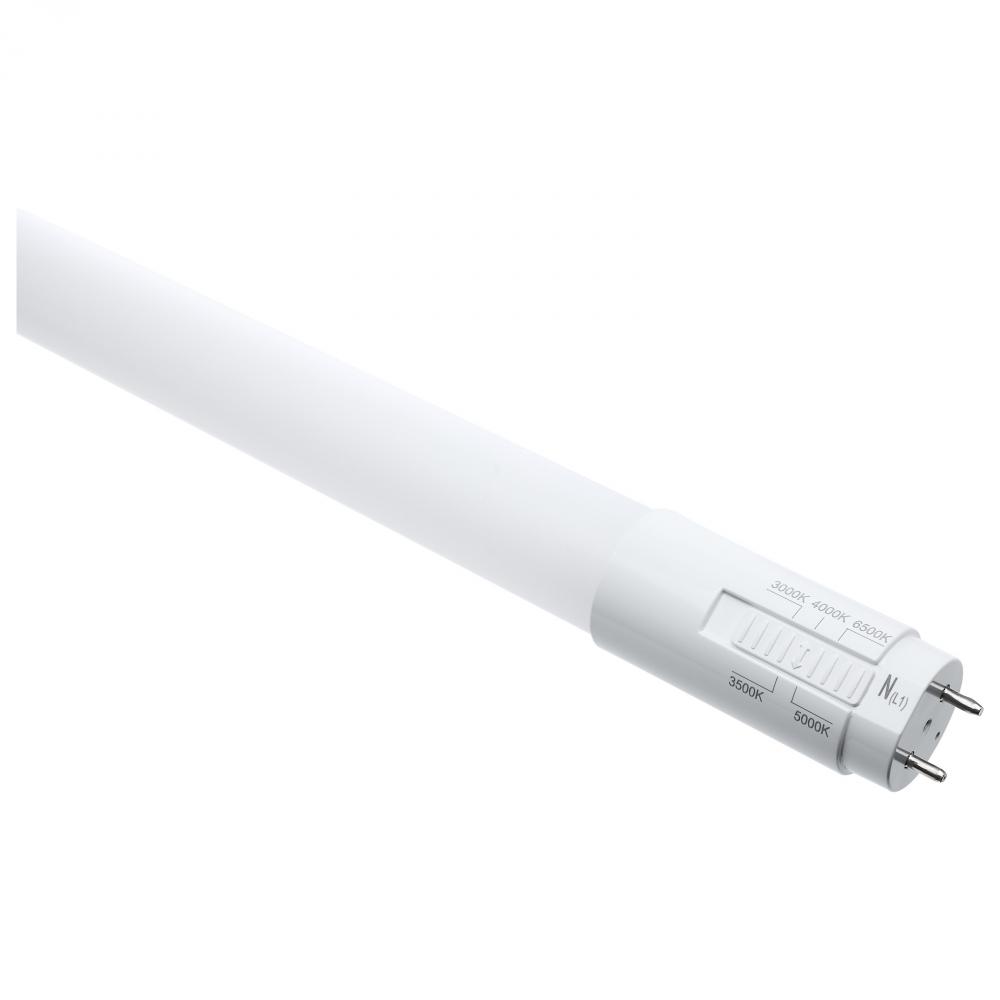

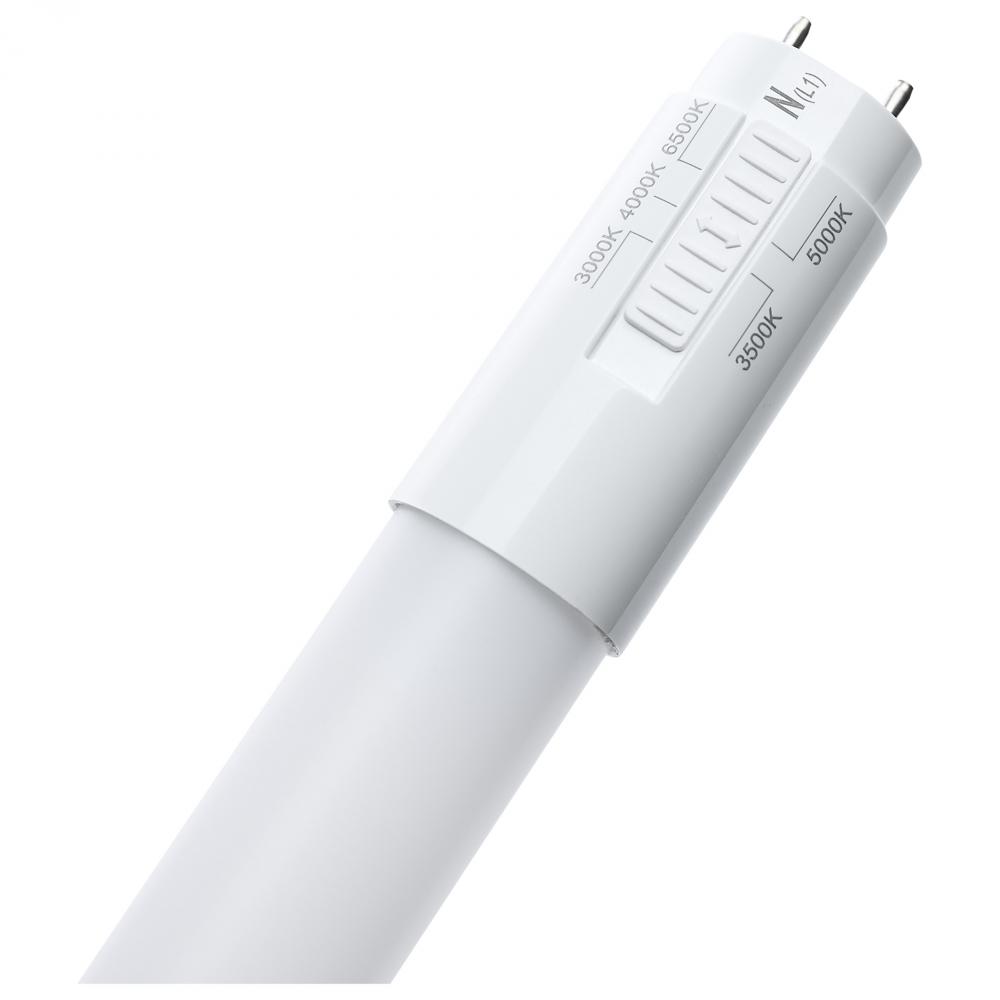

CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Daylight
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 10 percent
Dimming Type:
Reverse Phase or Phase Selectable
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-VX6545
DLC Primary Use:
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy:
152.38/157.14/156.52 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
4-ft
Feature 10:
5-CCT Selectable
Feature 2:
10.5W
Feature 3:
T8
Feature 4:
Medium Bi-Pin Base
Feature 5:
PET Coated Shatterproof Glass
Feature 6:
120-277V Range Voltage
Feature 7:
Dimmable
Feature 8:
Type B Ballast Bypass
Feature 9:
Low Optical Flicker - Less than 2-percent flicker
Flicker Free:
Yes
Flourescent Equivalent:
32W
Housing Color:
White
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Double Ended;Single Ended
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
SATCO NUVO's S11663 LED 4-foot, 10.5W Flicker-Free Lamps offer smooth, continuous light with less than 2-percent flicker. Ideal for use in offices, retail applications, and safe for use in commercial kitchens with the PET coated shatterproof tube. Exte
Material:
Glass
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED Flicker-Free Lamps offer smooth, continuous light with less than 2-percent flicker. Ideal for use in offices, retail applications, and safe for use in commercial kitchens with the PET coated shatterproof tube. Extending the versatility
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
10.5T8/LED/48-5CCT/DIM/LF/BP
Style:
Utility
Surge Protection:
Built-in-surge protection - 0.7KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Watts:
10.5W
Manufactured By:
Satco Products Inc.
