Part Number: S18422 / Vendor ID Number: 4799 / Custom:

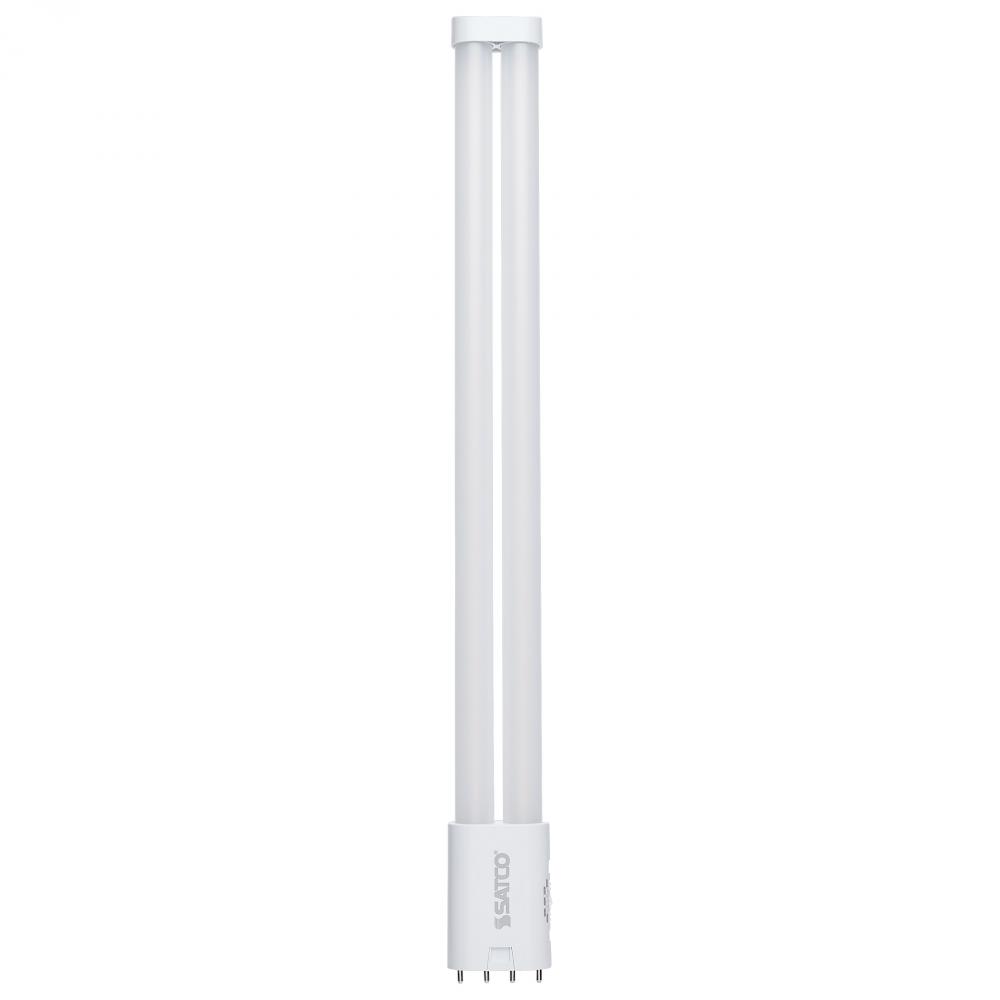

16 Watt PLL LED; 2G11 Base; 30K/35K/40K/50K/65K CCT Selectable; Ballast Bypass; 120-277 Volt

16 Watt PLL LED; 2G11 Base; 30K/35K/40K/50K/65K CCT Selectable; Ballast Bypass; 120-277 Volt
by Satco Products Inc.

27
94
Pack Of: 1
4 In Stock
Showroom Availability: Please call 1-780-450-0870 for availability
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 1.72"
Product Overview
16 Watt PLL LED; 2G11 Base; 30K/35K/40K/50K/65K CCT Selectable; Ballast Bypass; 120-277 Volt
Product Availability
    The Manufacturer has 4 in stock
Additional Information
Country of Origin- China
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish Family:
Frost
Category:
LED
Sub-Category:
PL-L
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/3500K/4000K/5000K/6500K
Bulb Shape:
T5
Diameter:
1.72
EA Length:
18.58
Harmonized Codes:
8539.52.0091
Length:
16.4
Lumens:
1900L/1950L/2000L/2000L/2000L
Shap Carton Width:
1.89
Ship Carton Height:
0.94
Ship Weight:
0.39
Warranty:
5 Year Limited - 10 hr per day
Weight:
0.28
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
115
Bulb ANSI Base:
2G11
Bulb Base:
2G11
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0191
Cartons Per Unit:
1

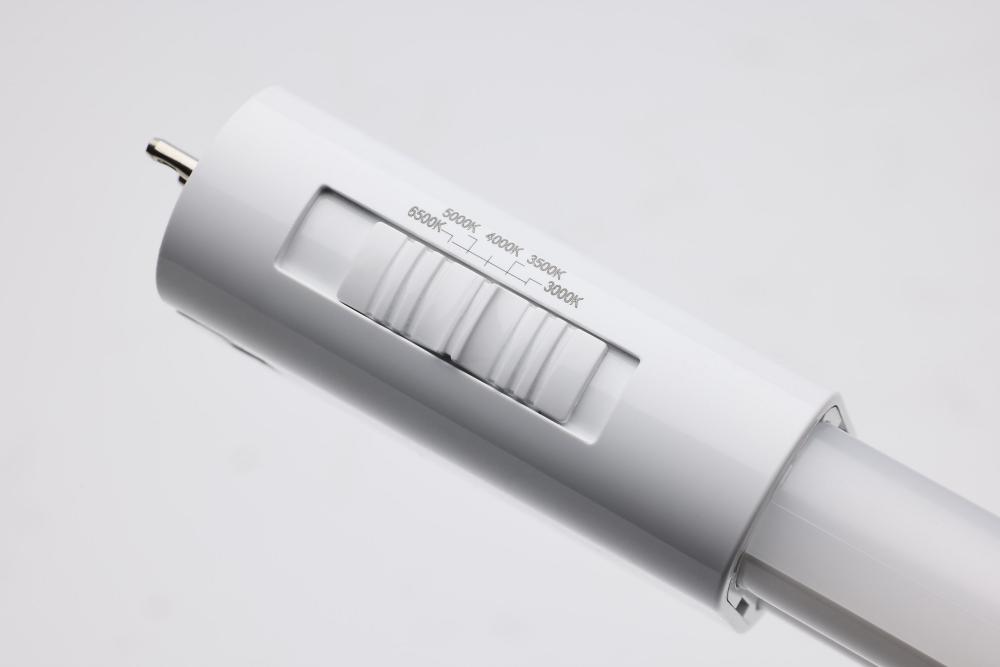

CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Daylight
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
118.75/121.88/125.00 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
5 CCT Selectable
Feature 2:
Type B Ballast Bypass
Feature 3:
Suitable for Use in Enclosed Fixtures
Feature 4:
Frosted PET Glass Tubing
Feature 5:
2G11 Pin Base
Feature 6:
Damp location rated
Feature 7:
50,000 Hour Functional Life
Feature 8:
5 Year Warranty
Flourescent Equivalent:
36W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Leg Spacing:
0.43
Location Rating:
Damp
Material:
Glass
NSF Approved:
Yes
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
16PLL/LED/5CCT/BP
Style:
Utility
Surge Protection:
Built-in-surge protection - 0.5KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
16W
Manufactured By:
Satco Products Inc.
