Part Number: LNR48-CC-BK / Vendor ID Number: 776 / Custom:
Recessed linear 48" - 120V, Triac dimming, 5CCT

Recessed linear 48" - 120V, Triac dimming, 5CCT
by Dals

220
00
Pack Of: 1
190 In Stock
Showroom Availability: Please call 1-780-450-0870 for availability
COGs: $110.00
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

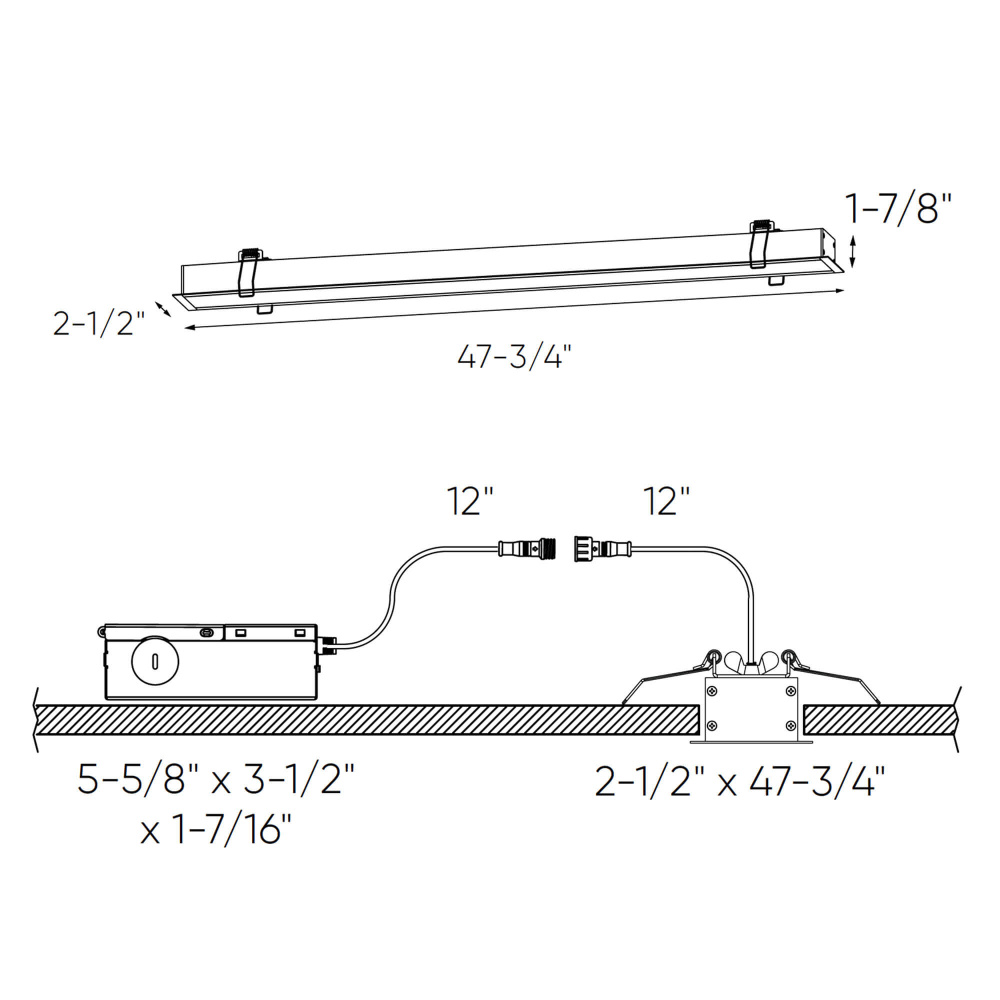

Dimensions
Height: 1.88"
Width: 2.50"
Length: 47.75"
Product Overview
The Boulevard series, an architectural recessed lighting channel that can be installed in a wide range of commercial and residential environments. Add depth to ceiling planes with a visible separation, or seamlessly daisy-chained to create dramatic effects.
Product Availability
    The Manufacturer has 190 in stock
Finish:
Additional Information
108° beam spread
Every fixture includes a junction box with integrated dimmable driver
Ideal operating temperature: -20° to 40° C
Switch-selectable CCT: 2700K/ 3000 K/3500 K/4000 K/5000 K
Info & Guides
Click Here to View Instruction Sheet
Click Here to View Catalog Page
Click Here to View Spec Sheet
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
Black /vendors/vendorImages black.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Dry Rated
Category:
Recessed
Subcategory:
Linear
Finish:
Sandy Black
Family:
Boulevard
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Bulb Dimmable:
Yes
Bulb Hours:
50000
Harmonized Codes:
9405.11.0091
Kelvin:
2700, 3000, 3500, 4000, 5000
Material:
Aluminum Extrusion
Ship Carton Height:
3.7
Ship Carton Length:
49
Ship Carton Width:
4.1
Ship Weight:
3.3
Warranty:
5 Years Limited
Air-Tight (ASTM E283--4):
Yes
Beam Angle:
108°
Bulb CRI:
90
Country of Origin:
China
Delivered Lumens:
3760
Dimmer Type:
Triac
Energy Star:
Yes
IC Certification:
Yes
Indoor:
Yes
IP Rating:
IP20
JA8:
Yes
Lens Material:
Frosted PC
Location Rating:
Dry Rated
Max Wattage:
40 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-20°C
Safety Rating:
ETL Approved
Shipping Master Height:
12
Shipping Master Length:
49
Shipping Master Quantity:
6
Shipping Master Weight:
23
Shipping Master Width:
8.7
Title 24:
Yes
Wiring:
Hardwired
Manufactured By:
Dals
