Part Number: 5006-FR-CC-WH / Vendor ID Number: 776 / Custom:

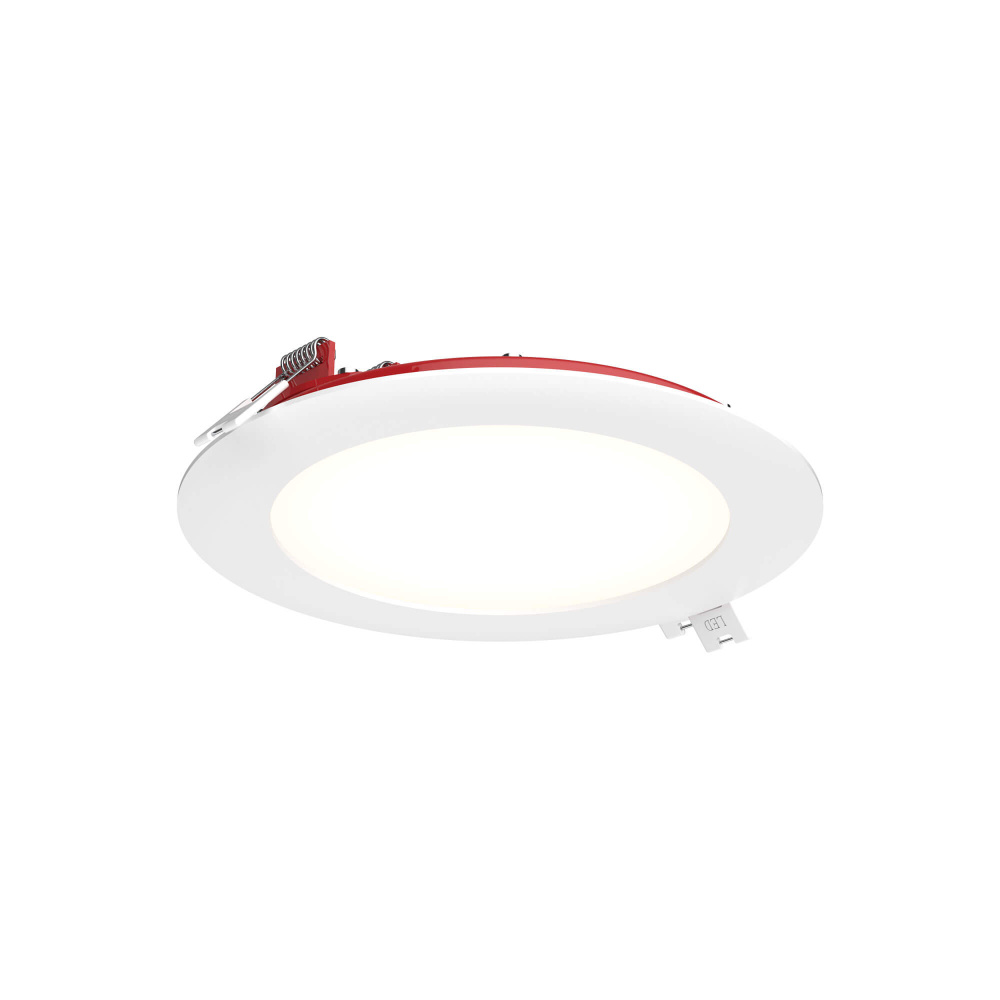

6" recessed panel, 5CCT, 2hrs Fire rated

6" recessed panel, 5CCT, 2hrs Fire rated
by Dals

59
00
Pack Of: 1
Call for Availability
Showroom Availability: Please call 1-780-450-0870 for availability
COGs: $29.50
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 1.13"
Width: 7.13"
Length: 7.13"
Product Overview
Our new LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Additional Information
2-hour fire-rated without additional housing or hardware (in accordance with UL 263, ASTM E119, and CAN ULC S101)
Every fixture includes a junction box with an integrated driver
IC certification (suitable for direct contact with insulation)
Over 35,000 hours of service life
Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
Info & Guides
Click Here to View Instruction Sheet
Click Here to View Catalog Page
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White /vendors/vendorImages white.jpg
Option:
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Outdoor
Wet Rated
Prop 65 /vendors/vendorImages prop65.png
Category:
Recessed
Subcategory:
Slim Panel
Finish:
White /vendors/vendorImages white.jpg
Family:
Excel
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Bulb Dimmable:
Yes
Bulb Hours:
50000
Kelvin:
2700/3000/3500/4000/5000
Material:
Aluminum
Ship Carton Height:
2.5
Ship Carton Length:
8.5
Ship Carton Width:
7.25
Ship Weight:
1.2
Warranty:
5 Years Limited
Weight:
1.1
Air-Tight (ASTM E283--4):
Yes
Beam Angle:
110°
Bulb CRI:
80
Country of Origin:
China
Delivered Lumens:
1230
Dimmer Type:
Triac/ELV
Energy Star:
No
IC Certification:
Yes
Indoor:
Yes
IP Rating:
IP44
JA8:
Yes
Lens Material:
Plastic
Location Rating:
Wet Rated
Max Wattage:
14 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-20°C
Outdoor:
Yes
Prop 65:
Yes
Safety Rating:
ETL Approved
Shipping Master Height:
15.25
Shipping Master Length:
17.5
Shipping Master Quantity:
20
Shipping Master Weight:
24
Shipping Master Width:
14
Title 24:
Yes
Wiring:
Hardwired
Manufactured By:
Dals
