Item Sales Info
Part Number: 5006-CC-V-WH / Vendor ID Number: 776 / Custom:

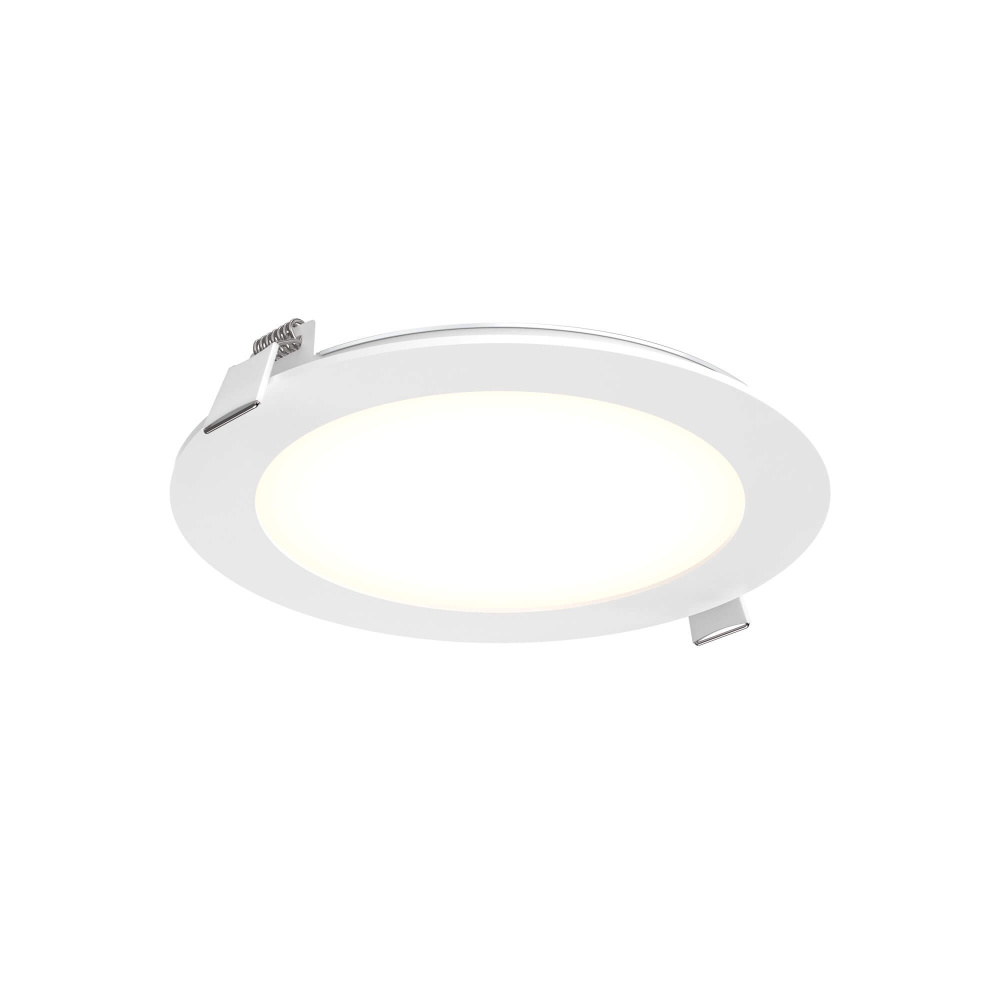

Multi CCT Slim Round Recessed Panel Light - universal 120V-347V, 0-10V dimming

Multi CCT Slim Round Recessed Panel Light - universal 120V-347V, 0-10V dimming
by Dals

45
90
Pack Of: 1
202 In Stock
Showroom Availability: Please call 1-780-450-0870 for availability
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

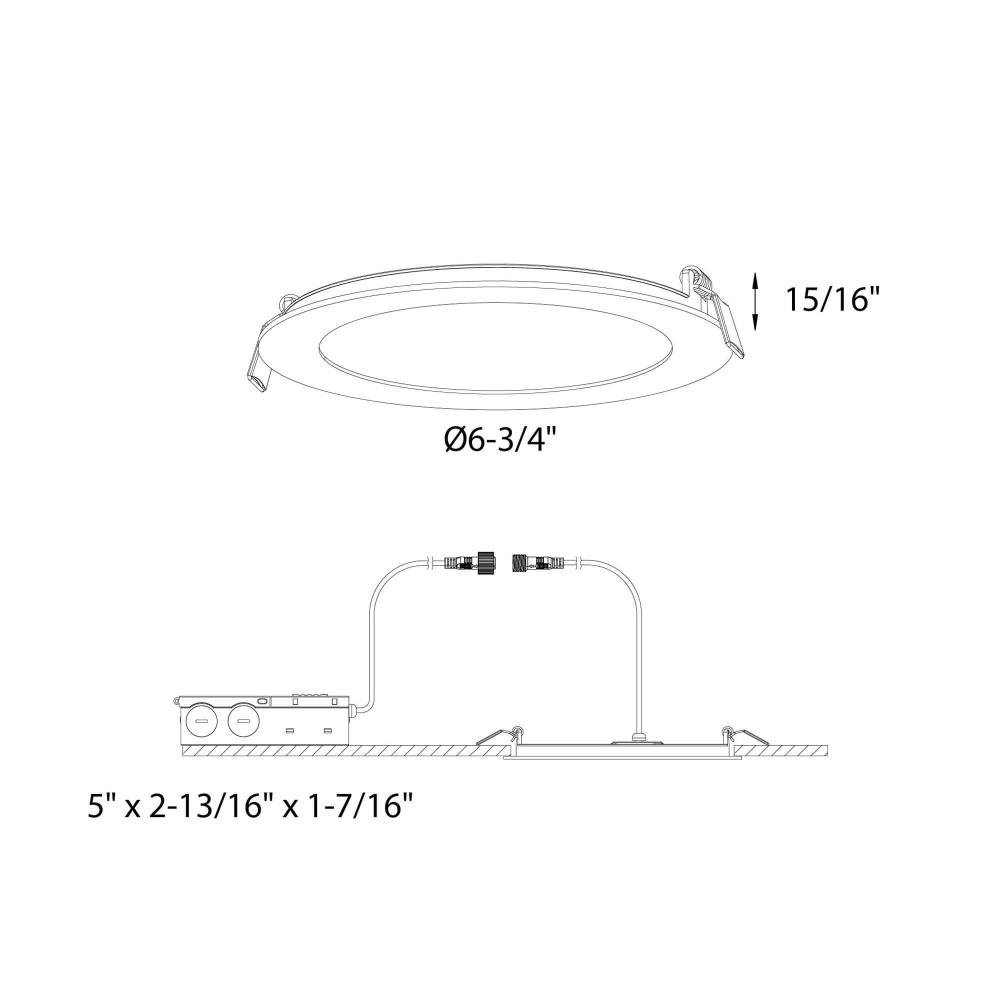

Dimensions
Height: 0.50"
Width: 7.13"
Length: 7.13"
Product Overview
Our new LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.
Product Availability
    The Manufacturer has 202 in stock
Additional Information
5-year warranty
Every fixture includes a junction box with an integrated driver
Over 35,000 hours of service life
Smooth 360° wide spread
Suitable for wet locations
Info & Guides
Click Here to View Instruction Sheet
Click Here to View Catalog Sheet
Click Here to View Spec Sheet
Technical Details
Details
Finish:
White /vendors/vendorImages white.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
Outdoor
Wet Rated
Prop 65 /vendors/vendorImages prop65.png
Category:
Recessed
Subcategory:
Slim Panel
Finish:
White /vendors/vendorImages white.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
Outdoor
Prop 65 /vendors/vendorImages prop65.png
Family:
Excel
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Bulb Dimmable:
Yes
Bulb Hours:
35000
Kelvin:
2700, 3000, 3500, 4000, 5000
Material:
Aluminum
Ship Carton Height:
2.75
Ship Carton Length:
7.75
Ship Carton Width:
7.75
Ship Weight:
1.5
Warranty:
5 Years Limited
Air-Tight (ASTM E283--4):
Yes
Beam Angle:
110
Bulb CRI:
80
Country of Origin:
China
Delivered Lumens:
1100
Dimmer Type:
0-10V Dimming
Energy Star:
Yes
IC Certification:
Yes
Indoor:
Yes
Lens Material:
Acrylic
Location Rating:
Wet Rated
Max Wattage:
14 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-20°C
Outdoor:
Yes
Pallette:
360
Prop 65:
Yes
Safety Rating:
ETL Approved
Shipping Master Height:
15.75
Shipping Master Length:
12.75
Shipping Master Quantity:
20
Shipping Master Weight:
27
Shipping Master Width:
16.75
Wiring:
Hardwired
Manufactured By:
Dals
